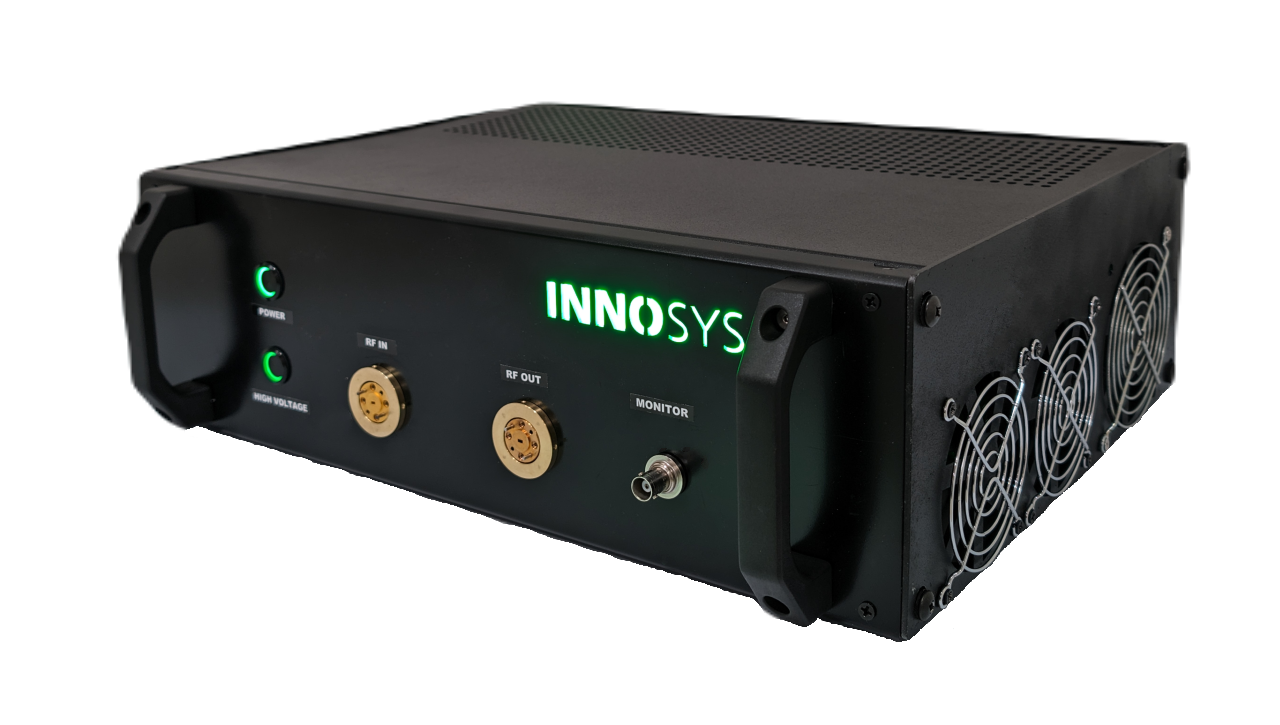

InnoSys V/E/W-band TWT Amplifier (TWTA) is available in standard and custom specified enclosures including standard 3U rack-mount and currently requires either a 100-120 VAC 50/60 wall outlet or a 28 VDC prime power. Other voltage and frequency options are available. The V/E/W-Band TWTAs come in a ready-to-use configuration. Simply connect prime power, the RF input signal, connect the RF output, and turn the unit on. You are now ready to begin running your V/E/W-Band application and system use.
High Efficiency High Voltage Switching Power Suppliers
High voltage,
high efficiency, high power density and low noise power supplies are available for CW or pulsed applications
with our offering of SSVD™ TWTs or other vacuum electronic devices such as Magnetrons and Klystrons and are
designed with fully automatic and custom specified protection and functions. Remote control is available with
these high voltage power supply product family offerings.
Product Options
V/E/W-band
TWT Amplifiers are available with features including:
Small overall size
Ethernet interface with integral
web server for easy monitoring and control
Lower and higher frequency units
Higher power unitHigh
linearity design
Integrated Solid State Driver (SSD) Amplifier
Other, please ask
us
Additional Information
Dimensions: (rack mount) 13.0” L x 17.0” W x 5.25”
H
Weight: 30 lbs
Cooling: Forced air
Example RF Specifications
V-Band
100
Watts Peak Output Power
50 Watts Rated Output Power64-68 GHz
Waveguide Input + Output (WR-15)
100% Duty
Cycle (CW)
Small Signal Gain: 33 dB
High overall gain with integrated SSDW-Band
100 Watts
Peak
Output Power
50 Watts Rated Output Power
79-86 GHz
Waveguide Input + Output (WR-12)
100% Duty Cycle
(CW)
Small Signal Gain: 27 dB
High overall gain with integrated SSD
